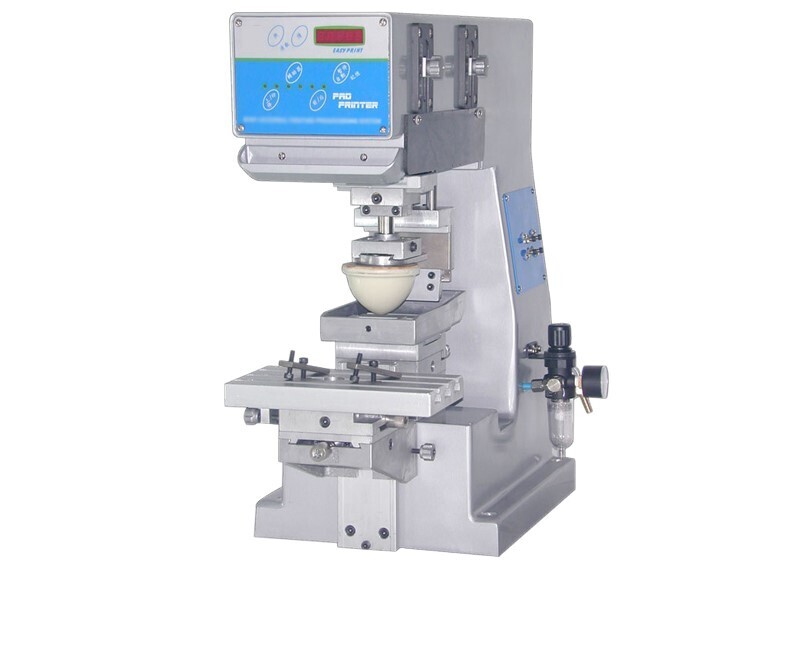

Single Color Opened Ink Tray Pad Printing Machine for Textile Area:

• T Shirt Care Label
• N95 Mask printing
• Garment Wash Instructions
• Many Other Applications

Parameters:

1. Printing color: 1 color

2. Front and rear stroke: 150MM

3. Up and down stroke: 75MM

4. Maximum printing area of the pattern: 100*100MM

5. The maximum printing area that can be obtained by broadening the oil pan: 110*100MM

6. Repeat accuracy < 0.05MM

7. Printing speed: 2500 times/hour

8. High ink utilization rate of 98.5%

9. Good working environment, water and ink volatilization

10. Oil pan size: 4*4 inches

11. Steel plate size: 100mm X 100mm

12. Printing workpiece height: 300mm

13. Control system microcomputer

14.The control voltage is 12VDC

15.Supply voltage 110/220V 50/60Hz

16.Connection load 20W

17.Pneumatic supply 5bar

18.The external dimensions of the fuselage are 520*460*780mm

19.Weight 45 kg

Features:

1. Monolithic integrated circuit IC compiler action program, monochrome printing mode.

2. Fast printing speed.Several machines can be combined to form an assembly line

3. Fully cast aluminum body with metal paint on the surface

4. The working table, glue head and oil pan can be located in any section of X.Y.Z axis

5. The pressure of ink suction and printing glue head can be adjusted independently

6. Oil scraping stroke can be adjusted

7. It has the function of automatically sliding ink back and forth to prevent ink from fixing

8. The speed of all cylinders has independent adjusting twist

9. Taiwan-funded MINDMAN pneumatic components are adopted

10. Calibration marks are on all adjustment positions

11. Do not drop the rubber head when uncompressed air enters

12. Machine running speed is fast, stable and low noise

13. Action mode selection: automatic | semi-automatic | manual | self-programming

14. Starting mode: | pedal switch on panel

15. Scraper working mode: pneumatic mechanical valve drives the cylinder up and down

16. Scraper pressure control: pressure regulating valve is constant pressure

17. Fixture fixing method: T-slot table, pressing and pressing

18. Fixture material selection: putty | aluminum | bakelwood | plastic | steel

19. Glue head fixation method: wood screw locking

Advanced computerized system control
Pneumatically driven adopt from FESTO / AIRTAC, can adjust the movement speed of each part
Built-in LED digital counter
Emergency stop system to ensure the safety of operator
Light-weight, strong aluminum cast machine frame
Ink trays, work table and pads are independently adjustable for easy color registration
Speed, pad and printing stroke are easily adjustable for different printing requirements
Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning

Application:
1). The pad printer is for small size workpiece,automatic color registration.

2). Suitable for the products which surface is single-color and needing exquisite
color printing,just need one fixture.

3). The product is suitable for cups,electrical appliances,barrels,stationary ,gifts and so on
